One Multi-Grip Rivet has a grip range of different sizes. Multi-Grip Rivets can substitute in applications where the thickness of the riveted material varies.

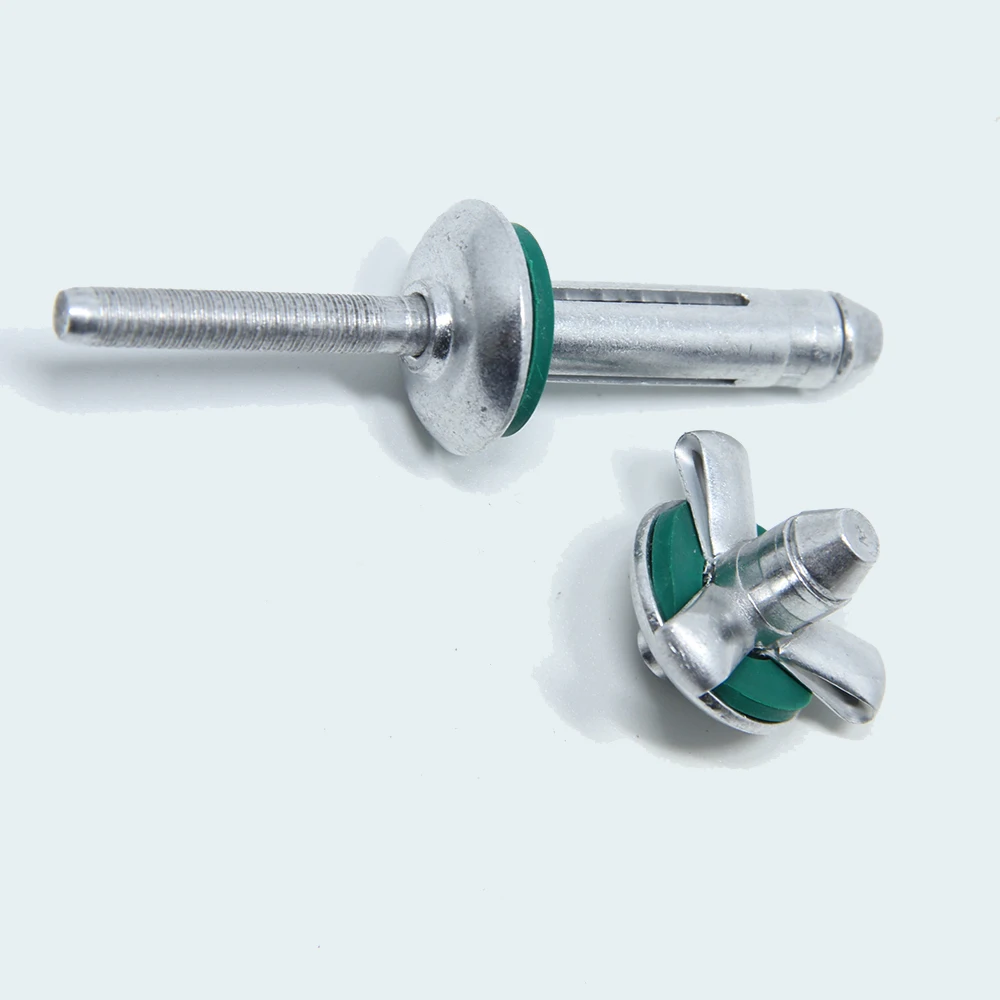

Large Flange Rivets are tubular, comprised of a hat and mandrel the mandrel's length is snapped off when installed. Large flange, also known as Oversized, have a larger washer on the hat than standard. The hat of the rivet is almost inverted, with a 120-degree countersink in the integrated washer. They are used in tracks where the head will not protrude into sliding tracks or rollers. Countersunk RivetsĪ countersunk blind rivet, also known as a Flat Rivet, is used in countersunk holes and, once set, finish flush to the surface. The mandrel is encased within the blind rivet itself. Also known as a waterproof rivet, they are distinguished by their flat top. Closed End RivetsĬlosed-End Blind Rivets differ from a standard pop rivet in that they feature a flat, closed end, which creates a watertight seal.
Color options are available in aluminum for this type. Open-end rivets are available in stainless steel, aluminum, and zinc-plated steel. Open End Rivets get their name because the mandrel is exposed at the rivet's bottom before installation. Open-end blind rivets create a fast and tight assembly however, they are not watertight. The answer is MANY! See the list of available options and descriptions below: Open End Rivets How many varieties of Blind Rivets are available? Once gripped, the mandrel snaps, holding the rivet in place. A pop rivet gun is set on the rivet, pulling the mandrel into the rivet body, making it grow and grasp the pieces together. The rivet body is then brought into contact with the parts. A pop rivet is then embedded through the hole. Where access to the two sides of a segment is constrained, a hole is first made through the parts to be joined. The initial segment is known as the rivet body (also called shell or cap), and the second part is known as the mandrel (also called the stem). Trade Names: Blind, Domed Open End, Closed End, Countersunk, Large Flange Open End, Multi Grip and Structural Rivets How do Pop Rivets work? Rivets are measured in installed grip range and length. The hat and mandrel can be made from the same material or a combination of two materials. They are tubular and comprised of a hat and mandrel the mandrel's length snaps off when installed. Pan head rivets Used in a similar way to Snap Head Rivets but chosen where maximum strength is needed.POP rivets connect two pieces of material in a quick, efficient manner with a hand riveter or pneumatic rivet gun. They useful for sheet metalwork structures where thickness of sheet precludes countersinking. Flat head rivet These are a compromise in that they are useful where a large protrusion might be an issue and can carry higher loads than Csk.
Hd Rivets, these are seated within a countersunk hole and used where a flush finish is required but, as a consequence, they support lower loads. Countersunk head rivet Abbreviated to Csk. Much of this type of work is now welded rather than riveted. This not only made the hammering over easier but, as the iron rivet cooled, the joint tightened due to its contraction. In traditional boiler-making, ship building and bridge girder construction for example, large iron Snap Head Rivets were passed through the plates to be joined and hammered over whilst red hot. Types of rivets Solid Rivets Snap head rivet These round-headed rivets were commonly used in large structural work where strength is needed.
